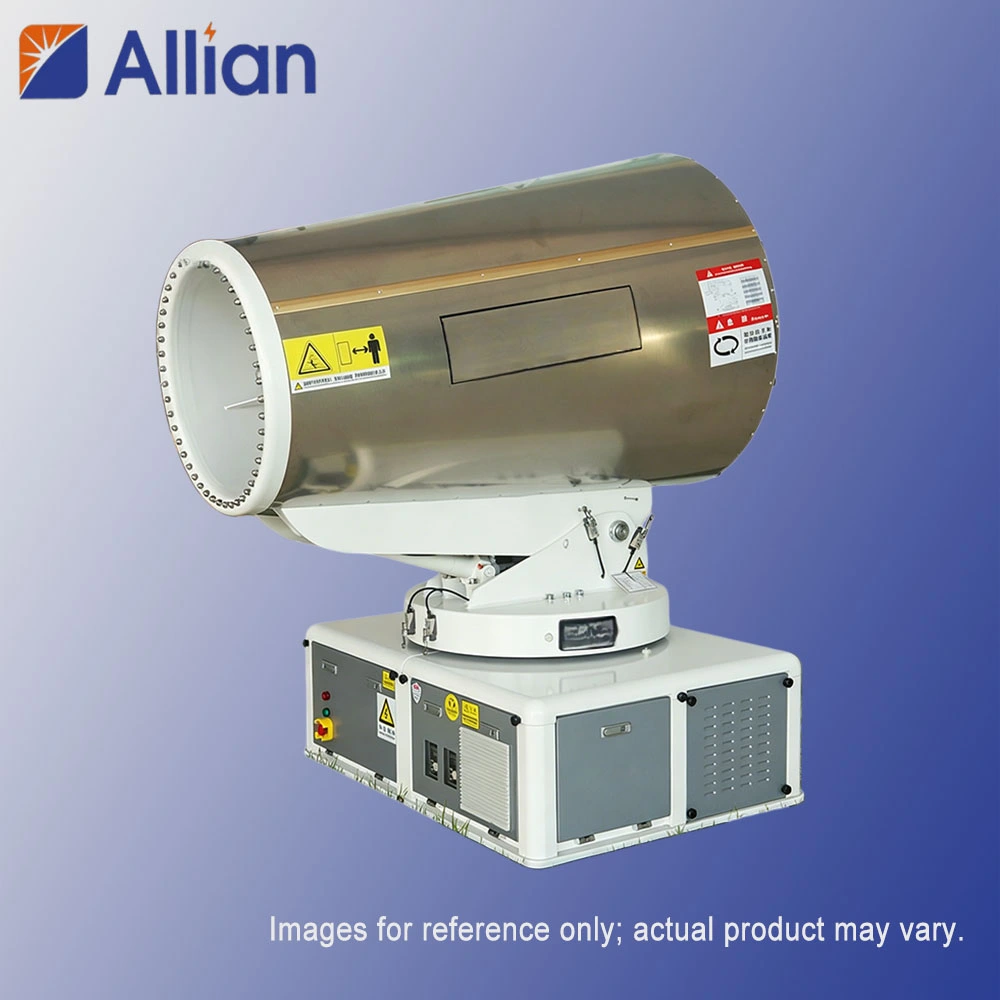

A06 Stationary Mist Cannon | 60m Heavy Duty Industrial Suppression
High-capacity 60-meter industrial mist cannon designed to secure wide-scale open yards or large-span factories. Equipped with dual-ring atomizing tech and PLC systems to eliminate heavy particulate accumulation effortlessly.
-
Horizontal Spray Range: 60 Meters
-
Total Power System: 27.5 kW (Fan: 18.5 kW / Pump: 7.5 kW)
-
Optimized Water Flow: 8.5 m³/h (Dense fog blanket for massive air filtering)
-
Control Method: Integrated Smart PLC Control Unit
-
Equipment Weight: 1200 kg (Reinforced structure built for harsh outdoor installations)
-
Best Application: Port terminals, dry bulk cargo hubs, industrial chemical compounds, and coal storage yards.
Product Overview
The A06 stationary mist cannon marks the transition into premium heavy-industry dust management. Harnessing a robust 18.5 kW aerodynamic fan casing and an independent 7.5 kW multistage pressure pump, this model delivers an expansive 60-meter spray curtain. It is built to survive challenging, abrasive air environments found near dry bulk terminals and mineral sorting zones.
Double-Ring Spray Matrix
Featuring 78 high-precision fluid-dynamic atomizing nozzles configured across its front exhaust barrel, the A06 turns 8.5 cubic meters of water per hour into microscopic airborne micro-drops that instantly trap fleeing PM10 and PM2.5 particulates.
Full Technical Specifications
| Horizontal Spray Range | 60 Meters |
|---|---|
| Total Power System | 27.5 kW |
| Water Consumption Rate | 8.5 m³/h |
| Control Method | PLC Control |
| Equipment Weight | 1200 kg |
| Dimensions (L × W × H) | 1900 × 1125 × 2365 mm |
| Acoustic Noise Level | 80 dB (@ 7.5m) |
| Fan Power | 18.5 kW |
| Water Pump Power | 7.5 kW |
| Atomizing Nozzles | 78 pcs |
