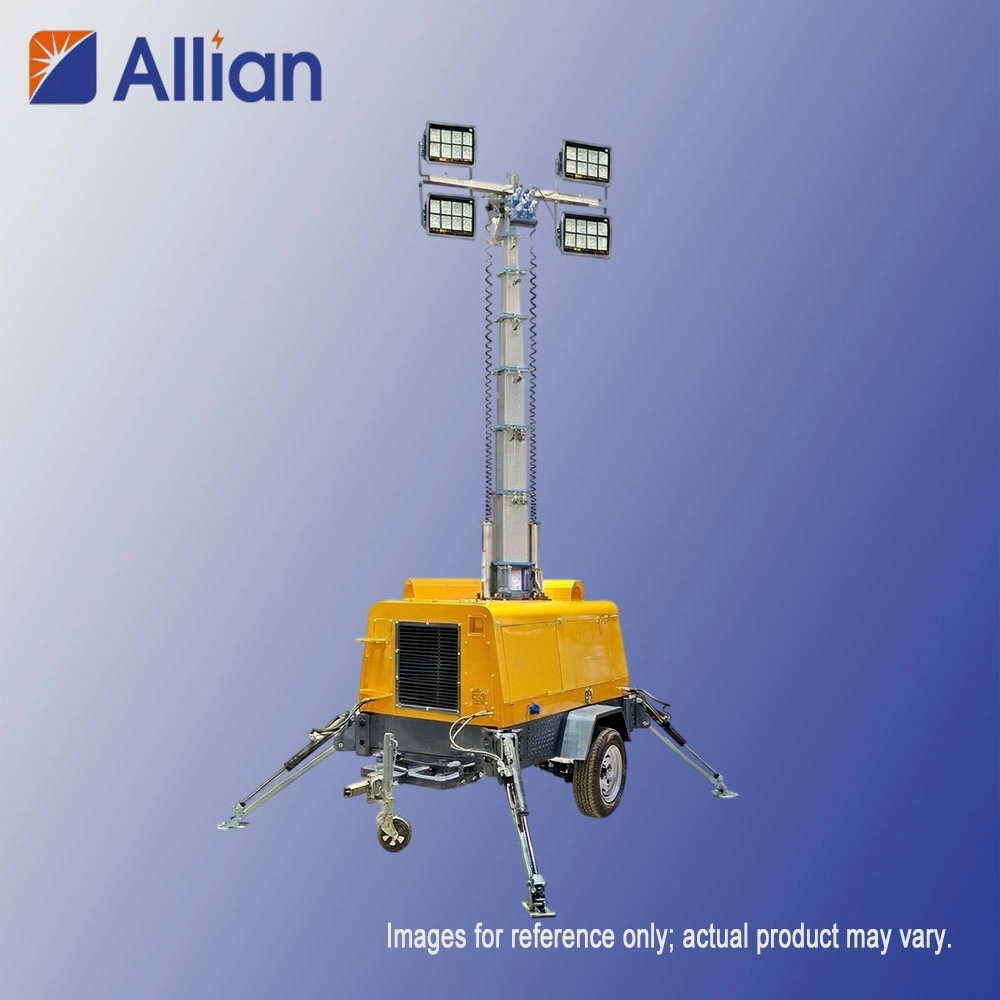

AL-4000D Diesel Light Tower (4x1000W Metal Halide, 9m Mast) | Allian Power
- Light Source: 4x1000W metal halide floodlight
- Luminous Flux: 440,000 lm
- Mast Height: 9 m (3-section)
- Lifting Mode: Hand crank, self-braking winch
- Engine: 11.1-20 kW diesel (Yanmar / Kubota / Changchai / FAW Xichai)
- Fuel Tank: 110 L, 65 hours continuous
- Wind Resistance: 20 m/s
- Noise Level: 72 dB(A) at 7 m

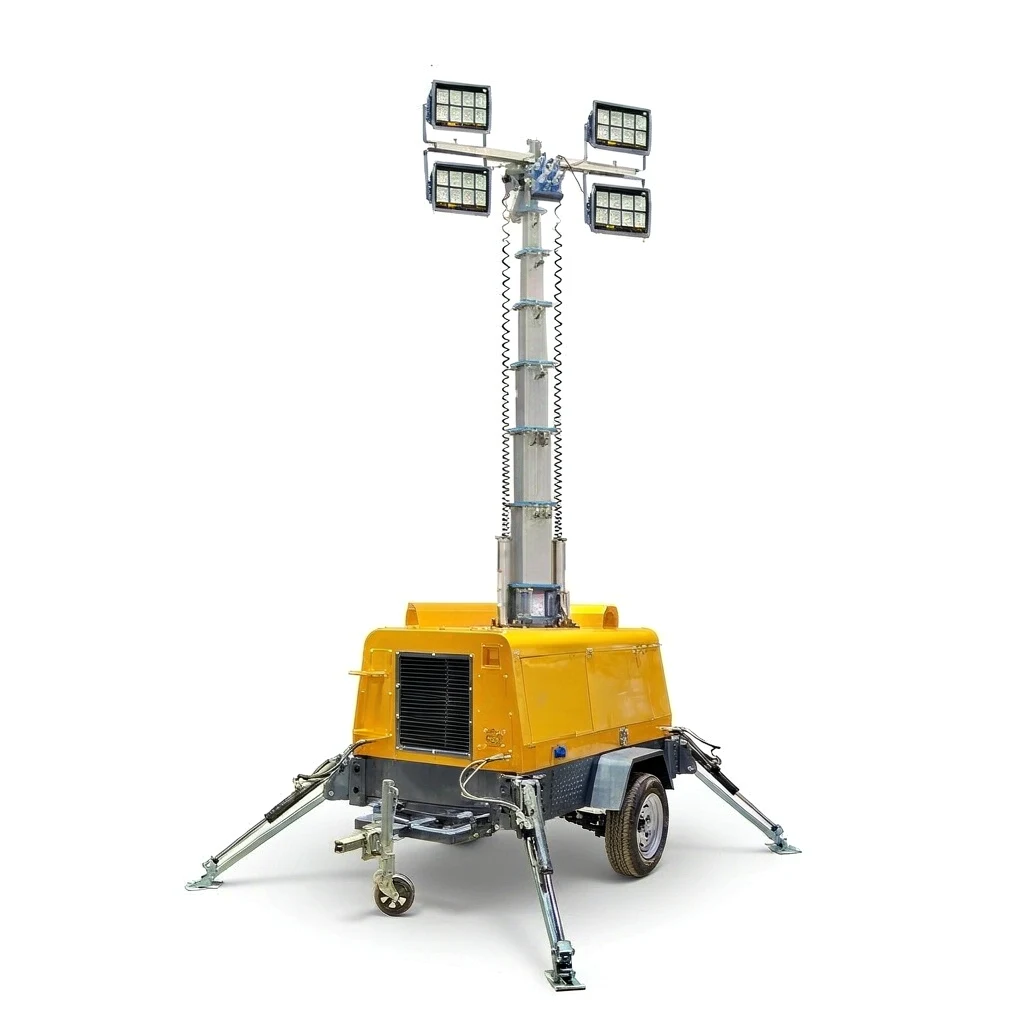

The AL-4000D is a heavy-duty diesel light tower for mining, construction and infrastructure projects that run through the night. A 110 L fuel tank delivers up to 65 hours of continuous light – nearly a week of night shifts on a single fill.
KEY FEATURES
Multi-Cylinder Diesel Power
Yanmar, Kubota, Changchai or FAW Xichai engines from 11.1 to 20 kW – water-cooled and built for round-the-clock duty.
440,000 lm of Metal Halide Light
Large-flux, long-life illumination from 4×1000 W floodlights.

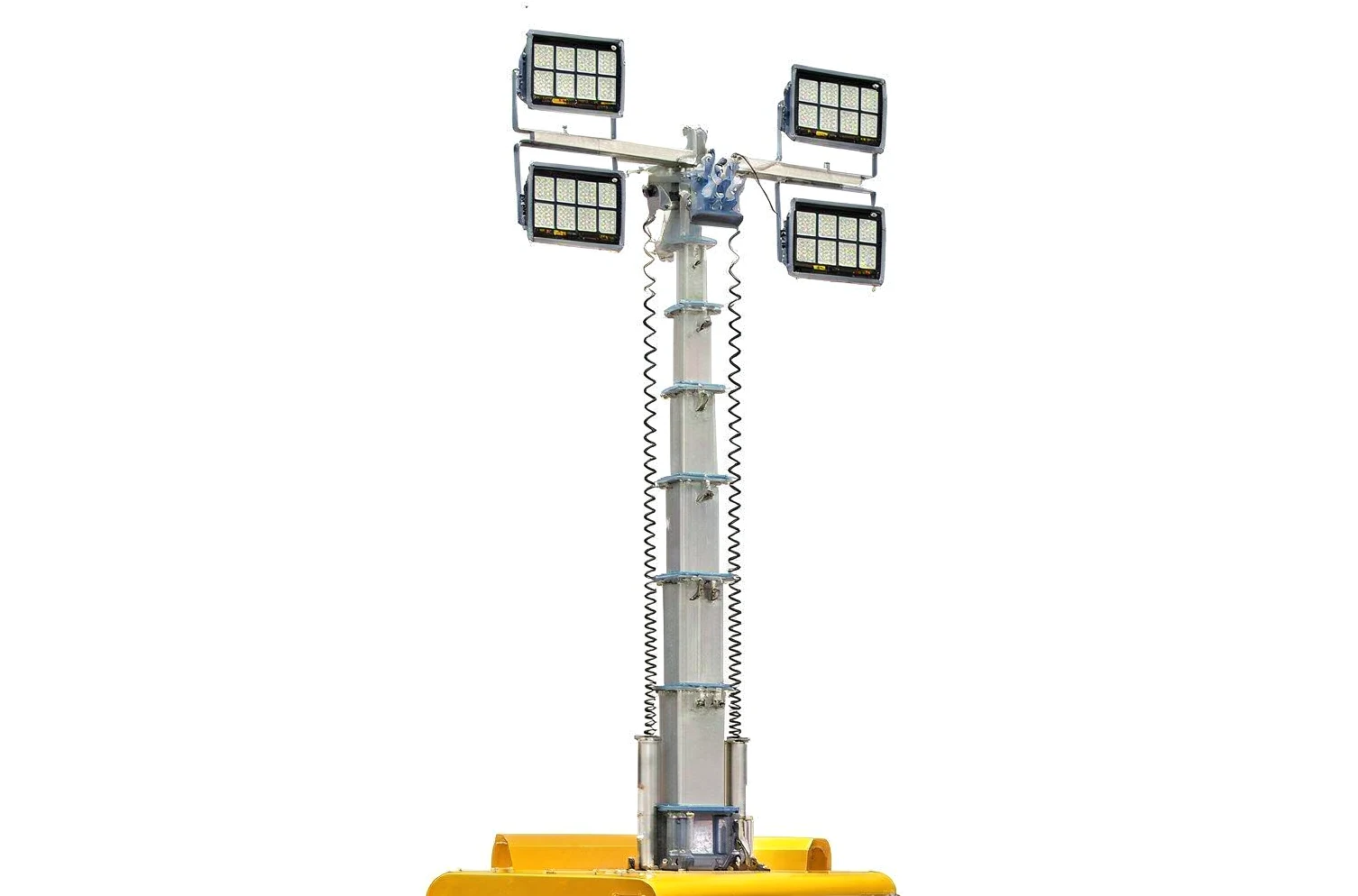

9 m Three-Section Mast
Galvanized, anti-drop and corrosion-resistant, with a long irradiation throw.
Self-Braking Winch
Hand-crank lifting with an adjustable irradiation angle.
Five Windproof Support Legs
A rock-solid stance up to 20 m/s wind.

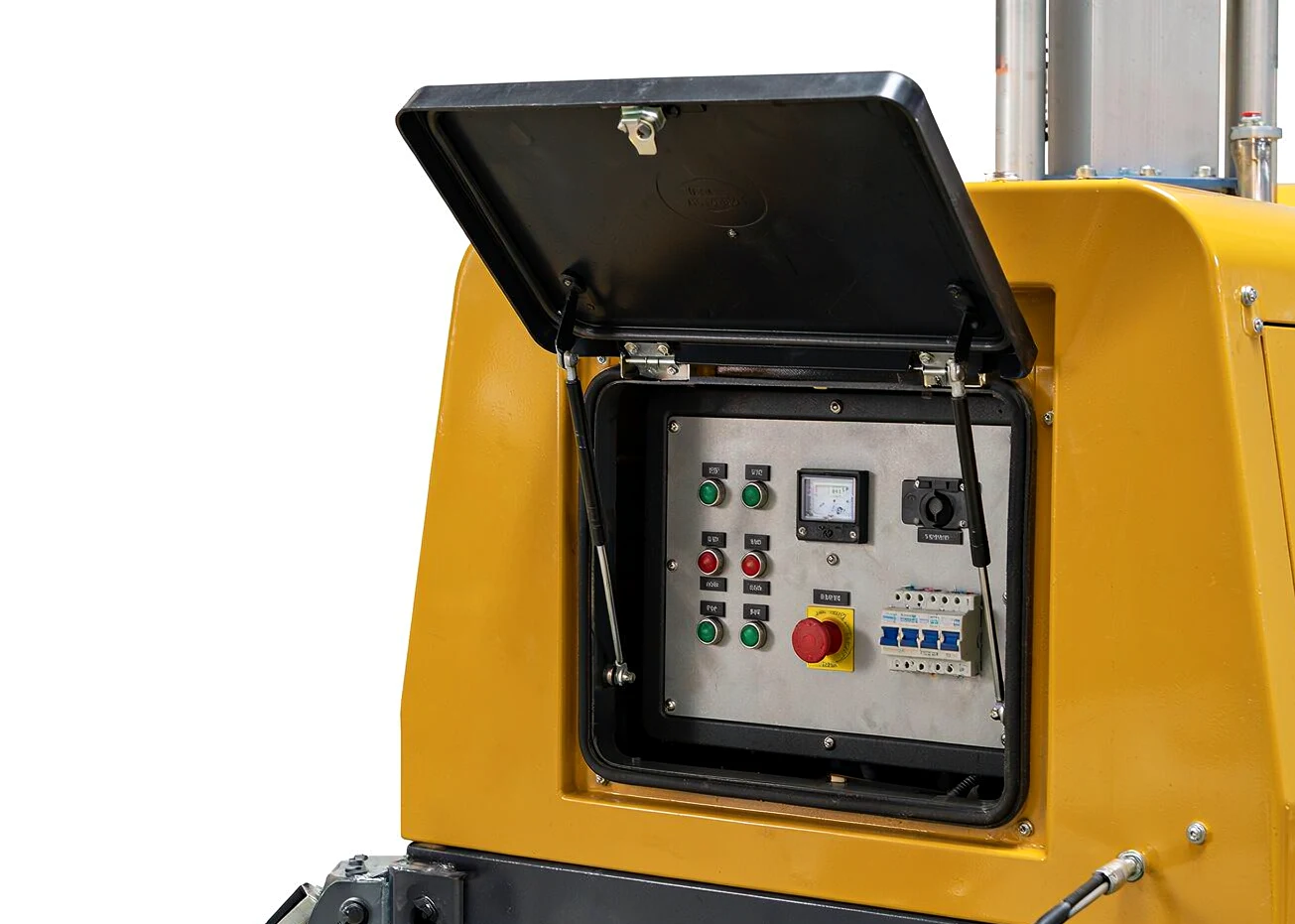

Rain-Covered Control Panel
Integrated operation panel protected from the weather.
65 Hours Per Fill
The 110 L tank covers a full week of night shifts without refueling.
LIGHT SOURCE
| Lamp Configuration | 4 x 1000 W metal halide floodlight |
| Luminous Flux | 440,000 lm |
DIESEL ENGINE OPTIONS
| Engine Brand | Engine Model | Cylinders | Power |
|---|---|---|---|
| FAW Xichai | 4DW81-23D / 4DW81-28D | 4 | 17 / 20 kW |
| Yanmar | 3TNV76-GGE | 3 | 11.1 kW |
| Changchai | 380 / 3M78 | 3 | 14.3 / 11.5 kW |
| Kubota | D1105 / EPAD1105 | 3 | 12.6 kW |
GENERATOR & ELECTRICAL
| Frequency | 50/60 Hz |
| Rotate Speed | 1500/1800 rpm |
| Combustion / Intake | E-TVV, natural aspiration |
| Alternator | Brushless, Class H insulation |
| Rated Voltage | 230/240-120 V |
| Insulation Class | Class H |
| Protection Rating | IP23 |
| Start-up Method | Key start |
MAST & LIFTING SYSTEM
| Mast Sections | 3-section |
| Lifting Mode | Hand crank (self-braking) |
| Max Lifting Height | 9 m |
| Wind Resistance | 20 m/s |
| Noise Level | 72 dB(A) at 7 m |
TRAILER & DIMENSIONS
| Suspension & Brakes | Leaf spring suspension & single axle without brakes |
| Towbar | With retractable guide wheel adjustment lever |
| Overall Length | 3,650 mm |
| Overall Width | 1,700 mm |
| Overall Height (Folded) | 1,700 mm |
| Tire & Rim Size | 14 inch |
| Fuel Tank Volume | 110 L |
| Continuous Working | 65 hours |
TYPICAL APPLICATIONS
Mining and quarrying, large-scale construction, rail and bridge projects, ports, oil & gas facilities, and disaster-relief operations that need days of autonomous lighting.
