AL-1600E Electric-Lift Light Tower (4x400W LED, 9m, IP65) | Allian Power
- Light Source: 4x400W LED
- Luminous Flux: 360,000 lm
- Mast Height: 9 m (6-section, electric lift)
- Mast Rotation: 359° manual, self-locking
- Engine: 4.5-12.6 kW diesel (Kubota / Yanmar / Kohler)
- Fuel Tank: 100 L, 60 hours continuous
- Protection Rating: IP65
- Wind Resistance: 20 m/s

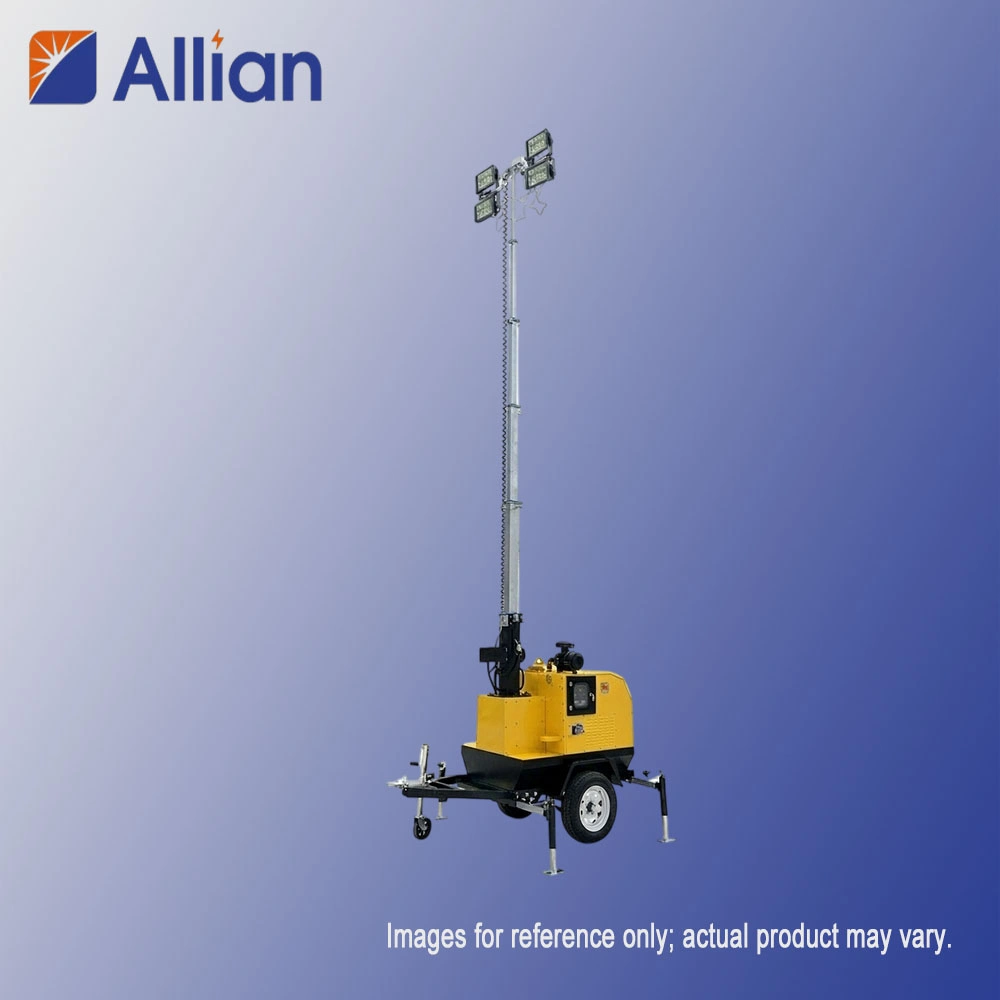

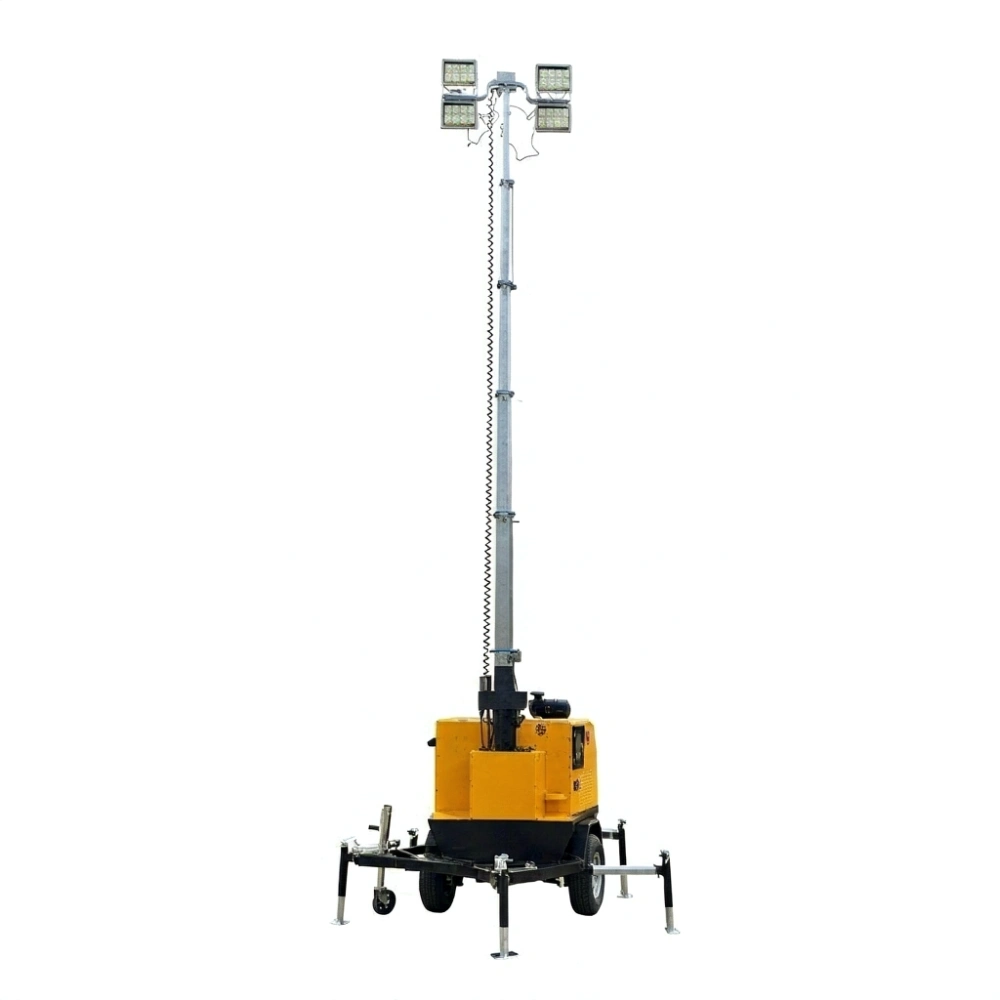

The AL-1600E lifts its 6-section mast electrically and rotates 359° to place light exactly where the crew is working. An IP65 rating keeps the electrics alive in driving rain and dust.
KEY FEATURES
Push-Button Mast
Electric lifting – no cranking, no hydraulics to service.
359° Self-Locking Rotation
Swing the light head to the work area and it stays put.

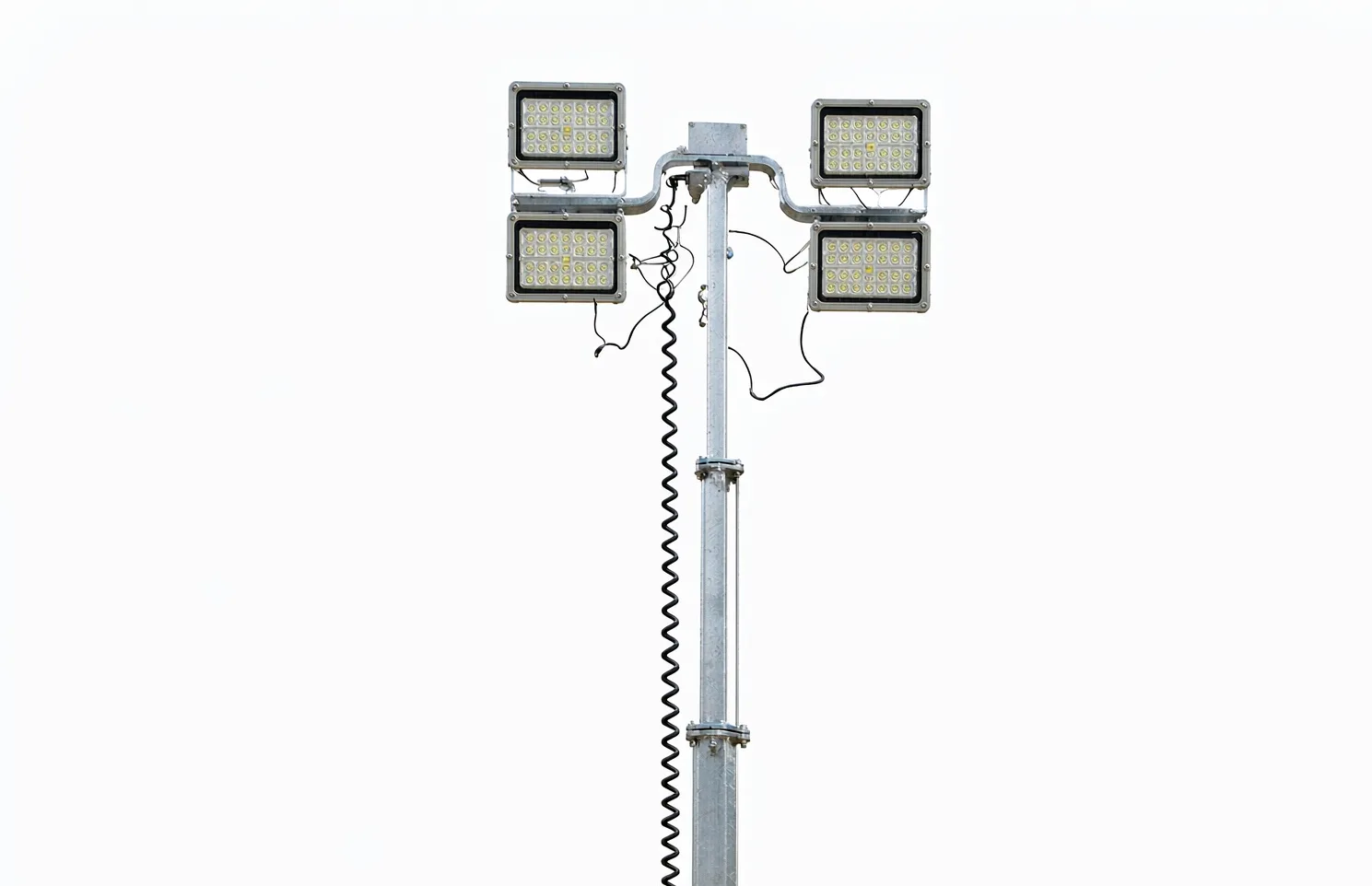

4×400 W LED Lighting
360,000 lm with long service life and low power draw.
Six-Section Galvanized Mast
Anti-drop, corrosion-resistant telescopic sections.
IP65 Protection
Sealed electrics keep working in driving rain and dust.
Five Windproof Support Legs
Rated for 20 m/s wind, fully deployed.
60 Hours Per Fill
The 100 L tank sees you through the longest night shifts.
LIGHT SOURCE
| Lamp Configuration | 4 x 400 W LED |
| Luminous Flux | 360,000 lm |
DIESEL ENGINE OPTIONS
| Engine Brand | Engine Model | Cylinders | Power |
|---|---|---|---|
| Kubota | Z482 | 2 | 4.5 kW |
| Yanmar | D1105 | 3 | 12.6 kW |
| Kohler | 3TNV76 | Water-cooled 4-stroke | 11.1 kW |

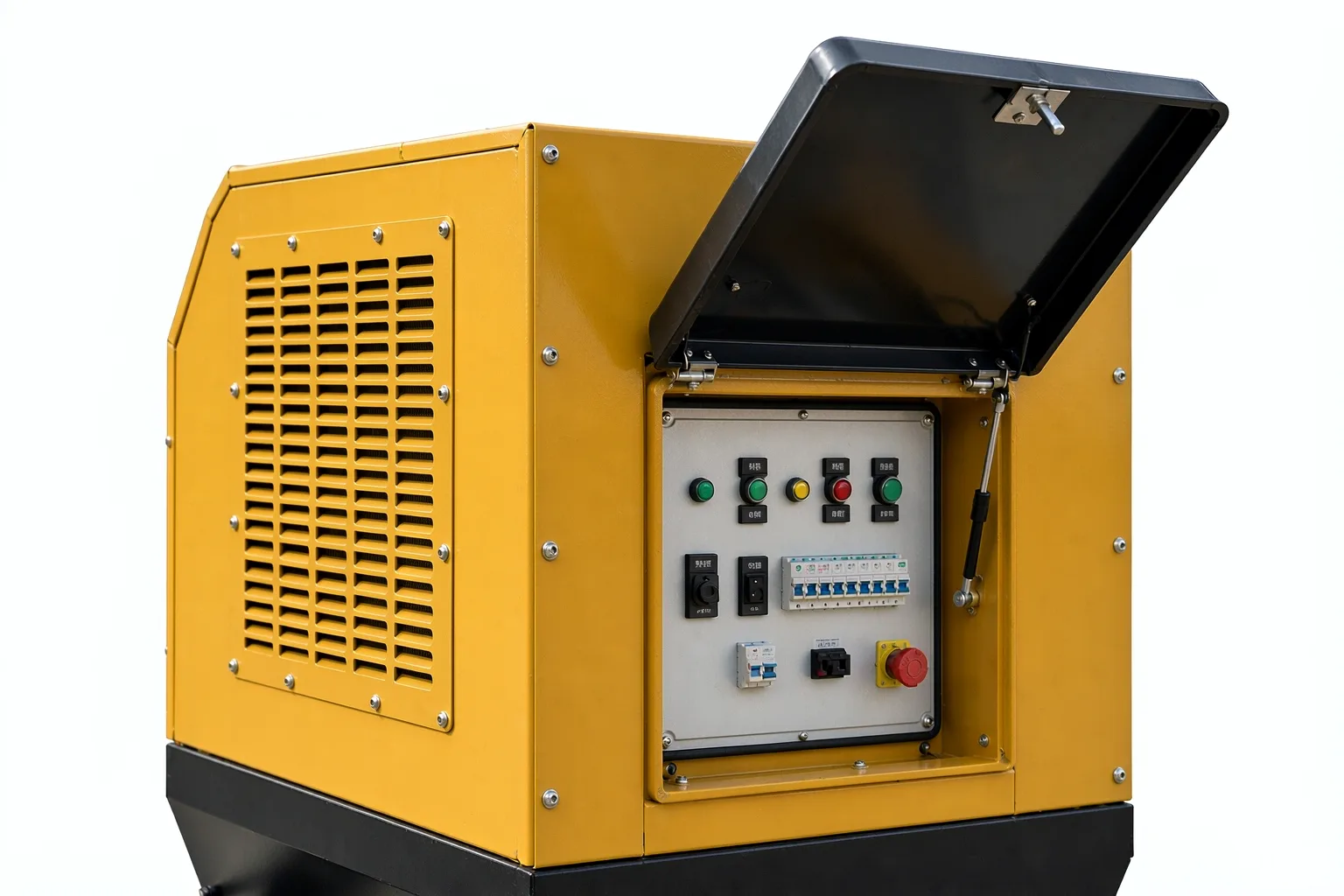

GENERATOR & ELECTRICAL
| Frequency / Speed | 1800 rpm |
| Rated Voltage | 240 V |
| Alternator | Brushless, standard fit |
| Insulation Class | Class H |
| Protection Rating | IP65 |
| Continuous Working | 60 hours |
| Fuel Tank Volume | 100 L |
| Start-up Method | Key start |
MAST & LIFTING SYSTEM
| Mast Sections | 6-section |
| Lifting Mode | Electric |
| Mast Rotation | 359° max manual rotation, self-locking |
| Max Lifting Height | 9 m |
| Wind Resistance | 20 m/s |
| Noise Level | 72 dB(A) at 7 m |
TRAILER & DIMENSIONS
| Suspension & Brakes | Leaf spring suspension & single axle without brakes |
| Towbar | With retractable guide wheel adjustment lever |
| Overall Length | 2,450 mm |
| Overall Width | 1,350 mm |
| Overall Height | 2,650 mm |
| Tire & Rim Size | 14 inch |
TYPICAL APPLICATIONS
Urban night construction, municipal maintenance, events and exhibitions, parking areas – sites where the tower is repositioned often and space is tight.
